Manufacturing Inspection Services

In conjunction with our Manufacturing & Test Systems capabilities, McCormick Stevenson offers Manufacturing Inspection Services in our lab facility, or on-site at customer designated locations. These services are provided with rapid turnaround time and complete documentation. By handling your dimensional inspection services needs, we are able to provide a variety of outsourcing benefits to you such as increased flexibility, quicker turnaround time, access to industry expertise, reduced labor costs and improved risk management.

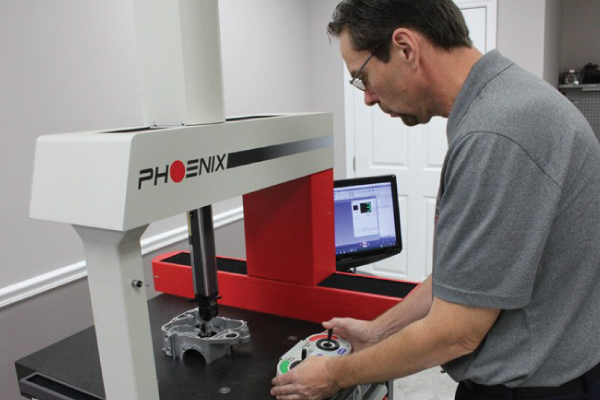

Ron Erdmann demonstrating Manufacturing-EquipmentPrototypingReverse-Engineering

Contract Inspection

  • First Article Inspection (FAI)
  • Batch Inspection for Key Characteristics
  • Capability Studies
  • Visual Inspection and Sorting
  • Source Inspection
  • Turnkey Inspection Systems
  • Project Management
  • Reverse Engineering

Complete Outsourcing Program

  • Part Inspection (rework and complete final
    processes as required)
  • Interface with supplier regarding discrepancies
    and clarifications
  • Packaging
  • Ship to final destination

Online and Offline CMM Part Programming

  • Dimensional Measuring Interface Standard (DMIS)
  • Coordinate-Measuring Machine (CMM)

Inspection Services Equipment


McCormick Stevenson uses state-of-the-art equipment for all our Inspection Services needs. Below are details on the various tools we use and have access to in our Manufacturing Inspections Lab

Numerex DCC CMM (40” x 28” x 24”)

  • Coordinate-Measuring Machine
  • Volumetric Accuracy .00025”
  • Renishaw PH9 Probe System
  • CMM-Manager Software (Nikon)

Helmel DCC CMM (16” x 20” x 14”)

  • Coordinate Measuring Machine
  • Volumetric Accuracy .00020”
  • Renishaw PH8 Probe System
  • CMM-Manager Software (Nikon)

Standard Inspection Equipment

  • Various handheld measuring tools

View or Download McCormick Stevenson’s MIS Flyer

View Flyer

If you’re facing an upcoming challenge, or have any questions, please reach out and see how McCormick Stevenson can help you deliver.

Bob Neshta, Dimensional Metrology Lab Manager
Phone: (727) 735-9633; 259
